Paper Cutting Machine
Paper Cutting Machine
Application:
This machine is applied to cut large wound rolling packing materials, such as kinds of paper material, paper&plastic compound material, color printing compound material and so on. It is widely used in the paper handing and printing-packing line.
Features:
- This machine is suitable to transversely cut the roll materials like paper, film printed compound
- with computer controlling, automatic length setting, automatic correction system, automatic counting, photoelectric trace and so on.computer control,easy operation,high precision special ally steeled knife
- Magnetic powder clutch controls the rewind tension.
- The machine is a good equipment for the roll paper to cut.
- Output paper part:it can adjust the number of batch or single paper output.
| Unwinding & Gluing | Cutting System (6 Blades) | Automatic Collecting | |
 |
|
 |
DESCRIPTION:
| Technical Parameter | Control System | ||
| Paper Layer | 3 layers | Main Motor | Scheneider |
| Inner Diameter | 4-12mm | Cutting Motor | Scheneider |
| Wall Thickness | 0.3-1mm | Motion Controller | Scheneider |
| Gluing Way | Single/Double sides | Touch Screen | JAPAN |
| Operator | 1-2 person | Inverter | Scheneider |
| Speed Control | By Inverter, pole free speed regulation | Pneumatic Components | AirTAC |
| Power Supply | 380V/3Phase/50Hz | Electric Components | Scheneider |
| Cutting System | 6 | Bearing | Scheneider |
| cutting system | Serov direct connect | Servo Motor | Scheneider |
| Winding Speed | 1-55 meters/min | Screw Rod/slider | WON Korea |
| Machine & Parts | laser cut and hardness | Cylinder | AirTAC |
| Configuration | Measurement & Weight | ||
| Paper Reel Stand&Glue Unit | 3 Layers | Measurement | 3500*1500*1200mm |
| Belt | 5 Pieces | Working Space | 7000*5000mm |
| Mandrel Shaft | 2 Pieces | Weight | 1300kgs |
| Useful Tool | 1 Set | Delivery Time | 15 days |
| Model | 1200/ | 1400 | 1600 | |
| Max unwinding width | 1200mm | 1400mm | 1600mm | |
| Max unwinding diameter | Φ1600mm | |||
| Cutting length | 45-1450mm | |||
| Cutting accuracy error | ±0.3mm | |||
| Cutting thickness | 70-450g/M2 | |||
| Max cutting speed | 90-110 times/min | |||
| Max cutting meter speed | 300m/min | |||
| Finished paper batching height | 1200mm | 1400mm | 1600mm | |
| Overall power | 5.5kw | 6.5w | 8.0kw | |
| Weight | 3500kg | 3500kg | 3500kg | |

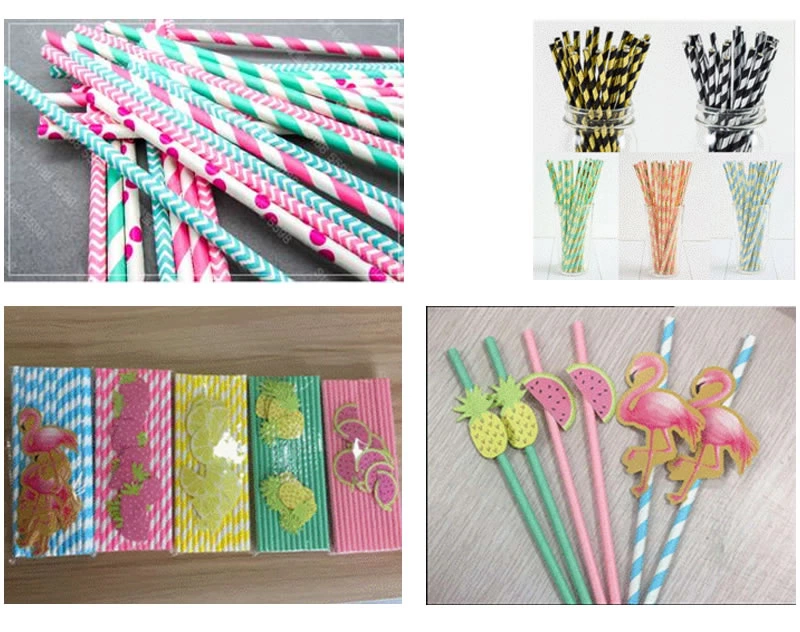

Samples:
